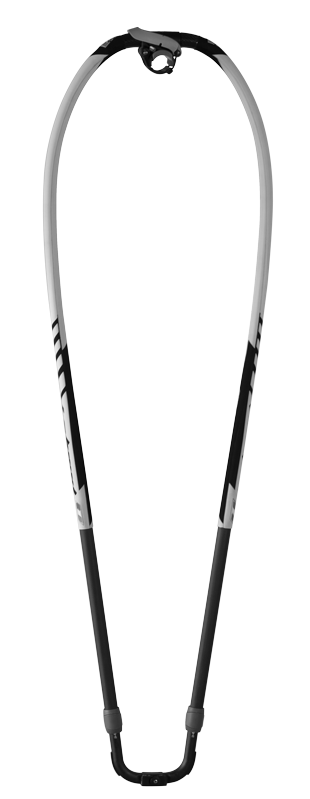

TECHNICAL SPECS
| CARBON+ | TYPE | SAIL RANGE | MAX LENGHT (cm) | EXT (cm) | SIZE INTERVALS (cm) | BOOM HEAD DIAM(mm) | DIAM.(mm) | WITH GRIP | DIAM. SHAPE | WEIGHT (KG) (+-5%) | WIDEST POINT(cm) | TAIL WIDTH (INTERNAL) (cm) | TAIL TYPE | PRICE |
| 140 | Wave Freestyle | 3.3-6.4 | 190 | 50 | 2 | SDM |Rdm Adapter incl | 25 | 28 | Octag. | 1.9 | 38 | 12 | Int. | 664,00€ |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 150 | Wave Freestyle Freeride | 4.0-7.2 | 200 | 50 | 2 | SDM |Rdm Adapter incl | 25 | 28 | Octag. | 2.0 | 38 | 12 | Int. | 664,00€ |
| 160 | FreeWave FreeSlalom | 4.5-7.5 | 210 | 50 | 2 | SDM |Rdm Adapter incl | 26 | 29 | Octag. | 2.2 | 42 | 12.5 | Int. | 749,00€ |
| 170 | Freeride Slalom Racing | 5.8-8.0 | 220 | 50 | 2 | SDM |Rdm Adapter incl | 26 | 29 | Octag. | 2.6 | 48.5 | 14 | Int. | 839,00€ |
| 190 | Slalom Racing | 6.5-8.6 | 240 | 50 | 2 | SDM | 29 | 32 | Octag. | 3.0 | 51 | 17 | Ext. | 859,00€ |
| 220 | Slalom Racing | 8.0-11.0 | 270 | 50 | 2 | SDM | 29 | 32 | Octag. | 3.3 | 53 | 28 | Ext. | 879,00€ |

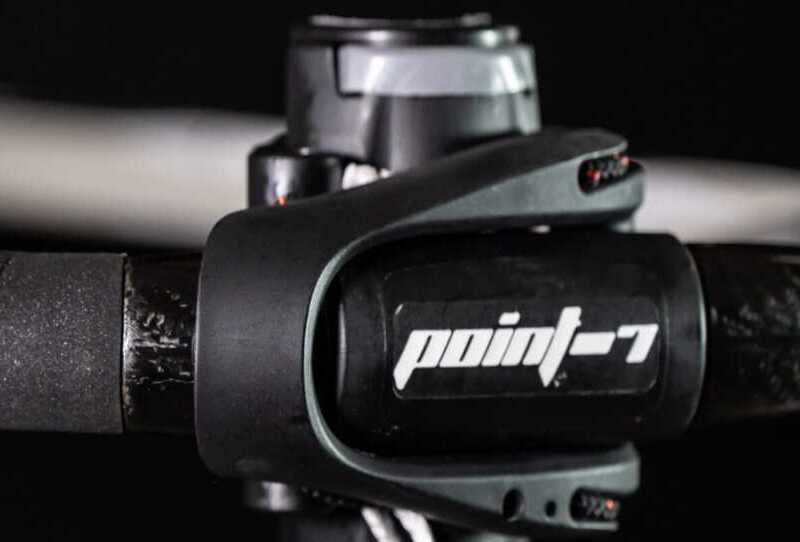

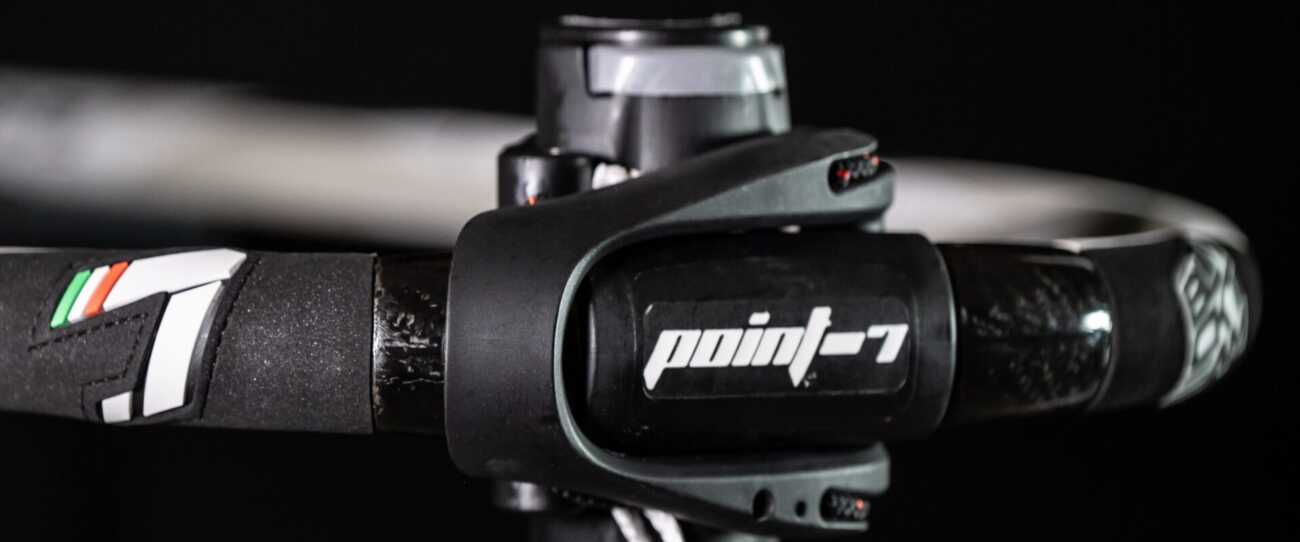

WAVE CARBON BOOM HEAD
Wave|Freestyle Boom head for the 140 and 150 booms
A stronger connection with less stress on the mast. The new longer cup gripping the mast dilutes the stress on to the mast structure, increasing the stability of the connection. This will also assure that the head will not to slip down the mast even with very little rope tension. A great combination with the boom arms to great the max stability and reactivity in freestyle and waves.
Fits P7 RDM adaptors perfectly.
Boom clamp leverage:
Long and ergonomic to allow easy open and closing of the boom head, also when on the board. Easy setting of the rope.
Boom clamp:
The clamp holding on the boom arms can tilt according to boom height setting. It has 3 screws to secure it on the boom, allowing the one of the leverages to be independent to make the opening and closure of the clamp easy, but at the same time the head and the boom to be fully tighten to the max.
Boom Rope: The best grip and pre-stretched rope is given to make sure that the boom does not lose the pressure given to it while clamping. The rope is the formuline 3.8mm d12.

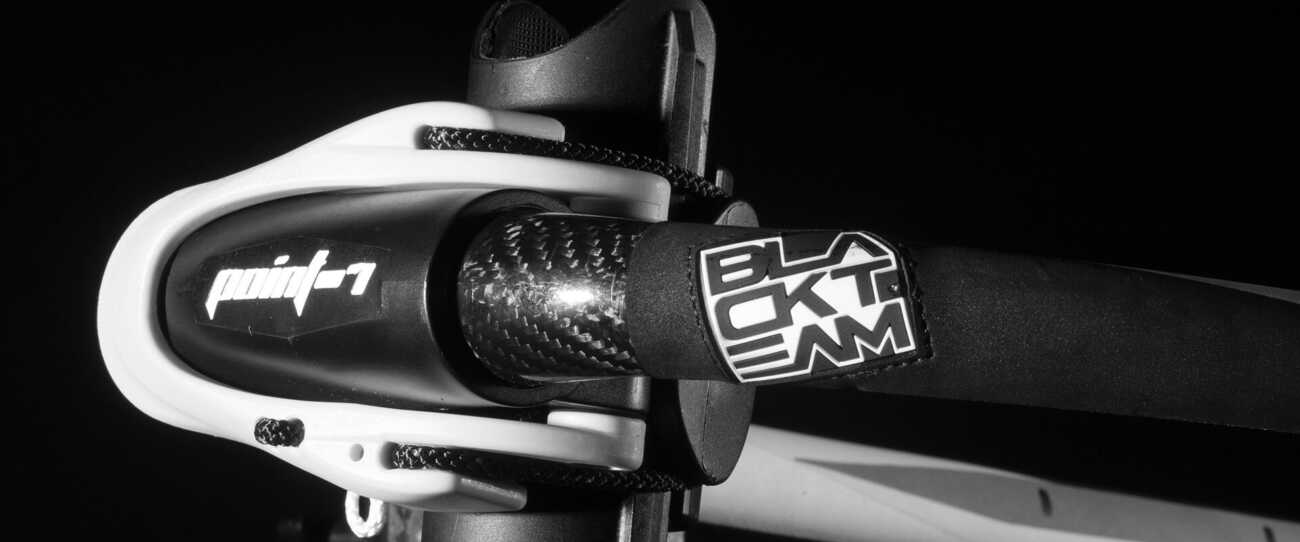

RACING BOOM HEAD
160| 170| 190 | 220 booms
A flexible connection on the mast is very important when slalom sailing, to allow the mast to breath more and use all it’s reflex. This result in power and extra acceleration. This will also assure less stress to the mast and a successful grip that will save the mast from snapping when catapulting at the boom area.
Fits RDM adaptors perfectly.
Boom clamp leverage:
Long and ergonomic to allow easy open and closing of the boom head, also when on the board. Easy setting of the rope.
Boom clamp:
The clamp holding on the boom arms can tilt according to boom height setting. It has 2 screws to secure it on the boom, allowing the one of the leverages to be independent to make the opening and closure of the clamp easy, but at the same time the head and the boom to be fully tighten to the max.
Boom Rope: The best grip and pre-stretched rope is given to make sure that the boom does not lose the pressure given to it while clamping. The rope is a formuline D12 3.8mm

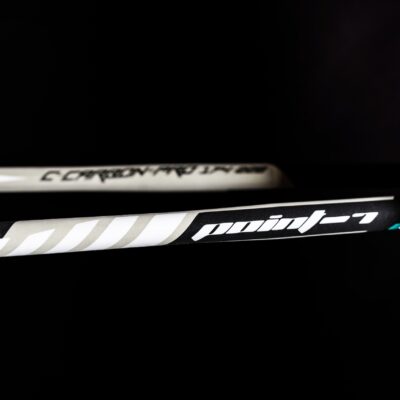

BOOM GRIP – COMFORT AND CONTROL.
When it comes to the grip, we’ve made sure you can hold on tight without breaking a sweat. Our lightly sanded, anti-slip pro grip ensures you get a secure, comfortable hold with minimal effort.
Anti-slip pro grip – Firm, secure grip with less strength required for ultimate comfort
Easy positioning marks – Simple reference points for harness line placement, letting you focus on performance
Ergonomic design – Designed to keep your hands comfortable and reduce fatigue during long sessions
With the Point-7 Boom Grip, you can stay locked in, no matter the conditions, while ensuring maximum comfort, control, and efficiency.

BOOM TAIL END
We know that the tail end is critical for both maneuverability and power, so we’ve crafted it to adapt to your needs. For smaller booms, we’ve minimized bulk to ensure lightness and agility during high winds and tight maneuvers.
Tail end design for smaller booms (140, 150, 160, 170) – The tail end fits inside the boom body, reducing bulk for maximum maneuverability in challenging conditions
Larger booms (190, 210) – The diameter of the tail end is increased and fits outside the boom body to increase stiffness and reduce weight for high-performance control
Whether you need lightweight agility or stiffness for stability, the Point-7 tail end delivers optimized performance based on your boom size and discipline.
Tail end pulley system:the wave sizes have the quick loop system, while the slalom sizes are having pulleys to host the adjustable outhaul system or simple threading to fix the clew tension.

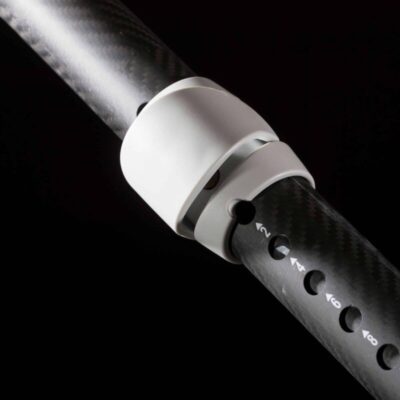

DOUBLE PIN CLIPS – SOLID CONNECTION, MAXIMAL PERFORMANCE.
Precision is everything when it comes to booms, and our double pin clips deliver exactly that. Designed to provide a stiffer, more secure connection between the boom body and the tail end, these clips ensure maximum stability during your rides.
Double pin clips – Offer a solid connection for enhanced strength and reliable performance
2cm adjustments – Easily fine-tune your setup with precise control
Size-specific design – Different clip sizes are used to best suit each boom size, ensuring optimal fit and performance
These clips keep everything locked in tight, so you can focus on pushing your limits without worrying about your gear.
